Building the 'Sinbad 2 in Germany':


Thomas Kaller has built Sinbad 2 in Germany and let me have the pictures shown below. He has done a beautiful job as you can see on the next page where the finished boat is shown at the launching.

SBG01 SBG02

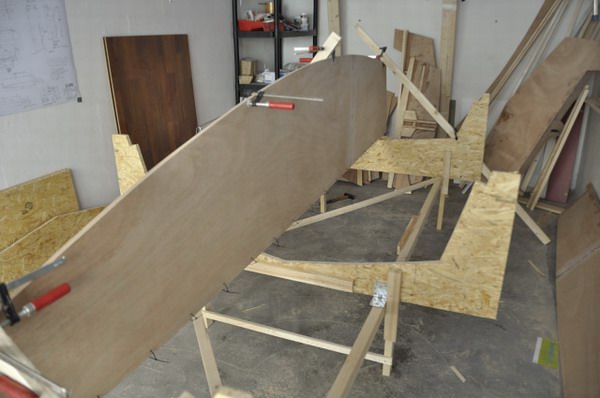

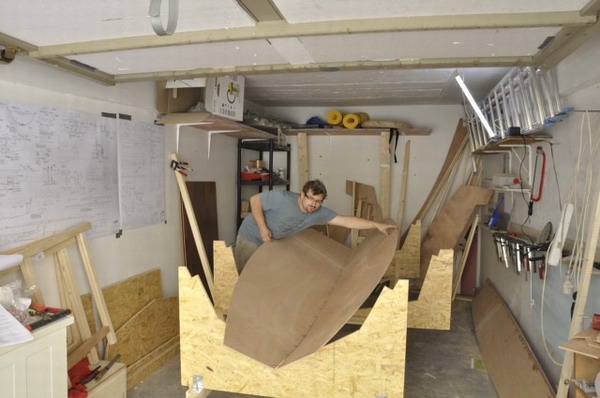

Bottom panels joined along the keel ready for unfolding. Laying the bottom panels into the jig.
SBG03 SBG04

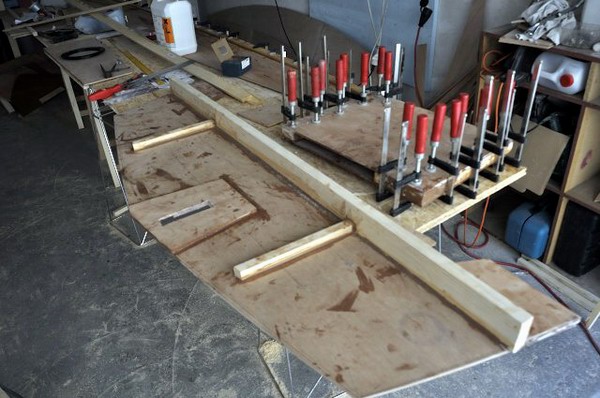

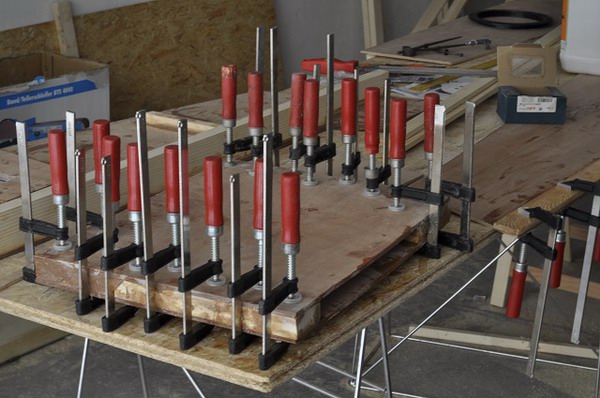

Making up the mid bulkheads and dagger board case. Close up of dagger board case being glued up.
SBG05 SBG06

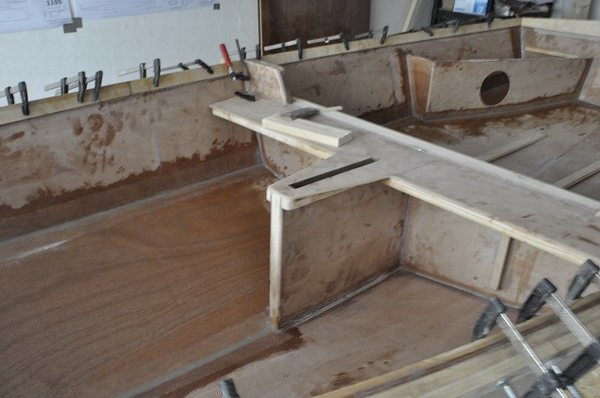

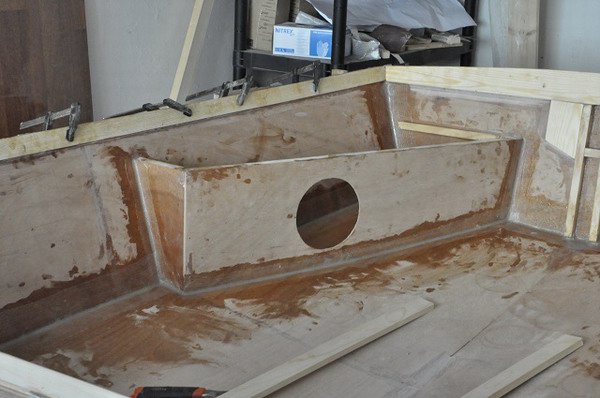

There is a gap in the photographic record, we go straight to a more advanced stage. The hull has been assembled and taped, here a detail of the aft seats. Mid bulkhead and dagger board case have been installed.
SBG07 SBG08

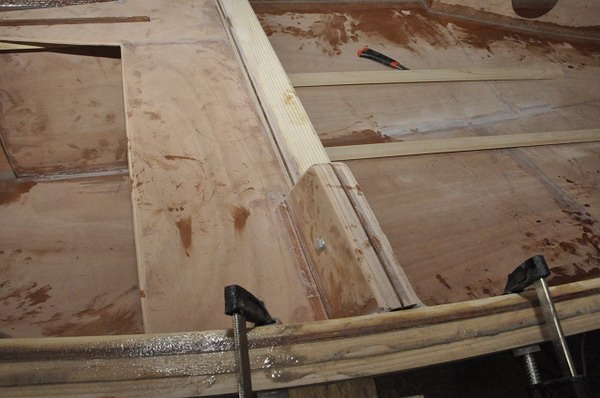

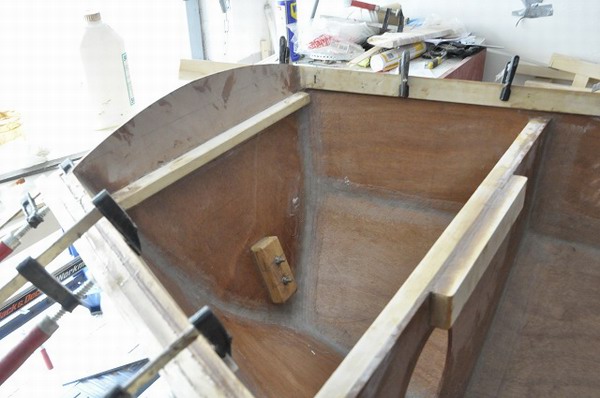

View of mid bulkheads at the time of fitting gunnel laminations. The bow section with forepeak bulkhead.
