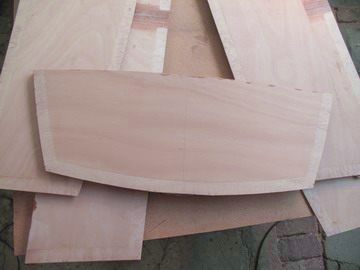

| Gluing inwale and other stiffeners to hull panels. | Recesses routed on outside of hull panels and transom to accommodate thickness of epoxy/glass for a flush finish. |
 |
|

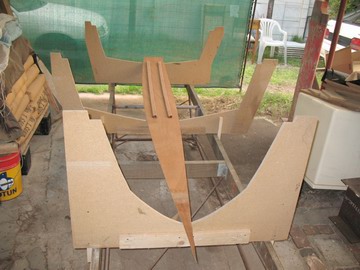

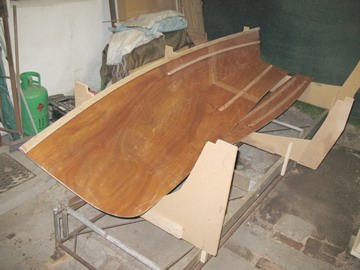

| Cradle set up with keel strake located. | Starboard hullpanel placed in cradle and copper ties inserted, tying chine together. |
 |
|

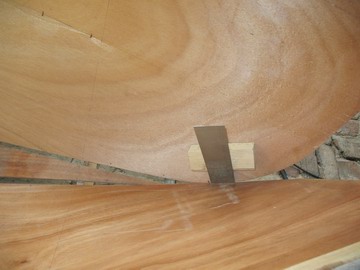

| Both hull halves in cradle, spread open, ready to wire to keel strake. | Sheetmetal strip inserted at stem to assist alignment. |
 |
|

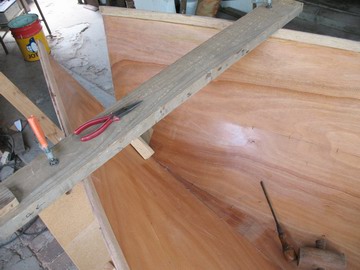

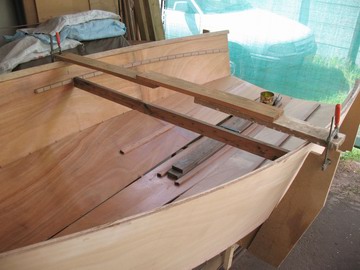

| Note hold-down using two clamps inserted into large holes drilled in cradle arms, exerting downward pressure onto gunnel via scrap lumber beam. Note also: saw-cuts in longitudinal seat-top cleat. This cleat makes topside too stiff to bend easily, but is still easiest glued on while panel is flat. | Hold down arrangment at forepeak bulkhead position. |
 |
 |

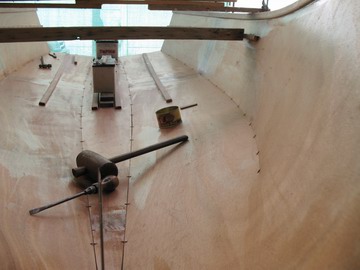

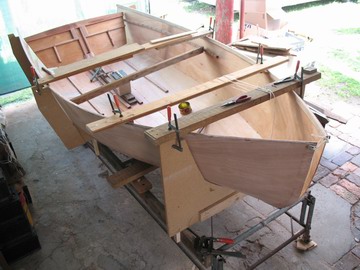

| Hull panels wired to keel strake. | Ready to fit transom and triangular stem piece. |
