Overview: Plywood Stitch and Glue - NESTING DINGHIES

  • Dinghies in this listing have been specifically designed for this construction method.
  • Plans for all my designs are very detailed - that's just how I like to work - I have had very positive buyer feed-back about that!
  • You get fully dimensioned hull panel and bulkhead layouts, sail and fitting plans, even the building jig, where it is required, will be detailed.
  • So there is no guessing, every part that is needed for the boat is shown on the plans.
My aim is to make building any one of these boats a breeze - you do not have to be an experienced boat builder!
Simple tools and your wish to own an attractive, fun sail or general purpose nesting dinghy is all you need.
  • Aside from the drawings, each plans package comes with a comprehensive building manual that details the building steps, a material list and comprehensive information on epoxy glass building techniques.
  • Under the "BOATS IN BUILD" menu item you will find building diaries that will be helpful as reference during a build.
  • Lots more general boat building info is available on this site, just click Tips, Tricks, Articles menu .

Note:
This 'Overview' is for NESTING DINGHIES. Each design in this listing gives brief stats and a sail plan, so you can home-in on something that interests or suits you.

For more information there are links to a comprehensive detail page with sailplans, pictures and descriptive text.

Just click the link next to: Go to detail page >>   to study the detail page.
Should you have further queries, please email me!

Plan Orders and Payment:
For details on how to order plans, how to pay and how I ship your order see my Ordering Guide

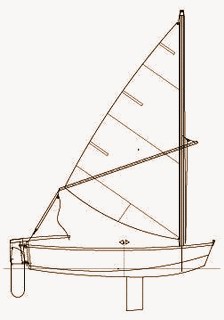

Sail plan

"Piccolo"

Hull type: - Nesting Dinghy (Modified Single Chine Pram)
Principal dimensions:
L.O.A. 2.78 m (9' 01.5"),
Beam 1.435 m (4' 8"),
Length after taking apart: 1.45 m (4' 9")

Sail area - 3.06 m2 (33 sqft).


        AVAILABLE AS PLYWOOD KIT



Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Piccolo 2.78 m (9' 01.5")
Sail plan

"Sinbad"

Hull type: - Nesting Dinghy (Single Chine Pram)
Principal dimensions:
L.O.A. 3.08 m (10' 1"), Beam 1.43 m (4' 8"),
Length after taking apart: 1.71 m (5' 7")

Sail area - 5.20 m2 (56 sqft).


        AVAILABLE AS PLYWOOD KIT



Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Sinbad 3.08 m (10' 1")

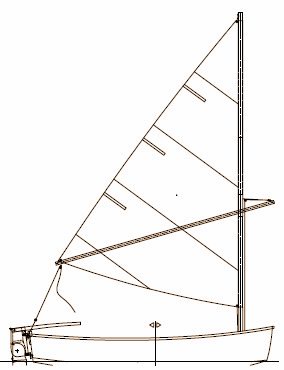

Sailplan

"Dorita"

Hull type:- Nesting Dinghy (Dory/Single Chine mix)
Principal dimensions:

L.O.A. 3.12 m (10' 3.0"), Beam 1.53 m (5' 1/4"),

Length after taking apart: 1.63 m (5' 4")
Sail area - 4.50 m2 (42 sqft)

Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Dorita 3.12 m (10' 3.0")

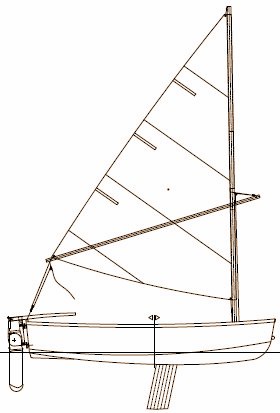

Sailplan

"Nexus"

Hull type:- Nesting Dinghy (Modified Single Chine)
Principal dimensions:

L.O.A. 3.32 m (10' 10.7"), Beam 1.50 m (4' 11"),

Length after taking apart: 1.7m (5' 7")
Sail area - 4.84 m2 (52 sqft)

Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Nexus: 3.32 m (10'10.7")
Sailplan

"Sinbad 2"

Hull type:- Nesting Dinghy (Single Chine)
Principal dimensions:

L.O.A. 3.40 m (11' 1.8"), Beam 1.53 m (5' 1/4"),

Length after taking apart: 1.75 m (5' 9")
Sail area - 6.43 m2 (69 sqft)


        AVAILABLE AS PLYWOOD KIT



Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Sinbad_2: 3.40 m (11' 1.8")

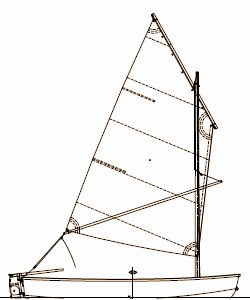

Sailplan

"Normus"

Hull type:- Nesting Dinghy (Single Chine)
Principal dimensions:

L.O.A. 4.00 m (13' 1.5"), Beam 1.59 m (5' 2.6"),

Length after taking apart: 2.04m (6'8")
Sail area - 7.0 m2 (76 sqft)

Plan costs:
45 (+/-US$51) - which entitles you to the building of one boat.

Total costs including shipping:   58
(+/- US$65)
BuyNow button deactivated!

Go to detail page >> Normus: 4.00 m (13'1.5")
