Overview: Plywood Stitch and Glue - SAILING & GP DINGHIES

  • Dinghies in this listing have been specifically designed for this construction method.
  • Plans for all my designs are very detailed - that's just how I like to work - I have had very positive buyer feed-back about that!
  • You get fully dimensioned hull panel and bulkhead layouts, sail and fitting plans, even the building jig, where it is required, will be detailed.
  • So there is no guessing, every part that is needed for the boat is shown on the plans.
My aim is to make building any one of these boats a breeze - you do not have to be an experienced boat builder!
Simple tools and your wish to own an attractive, fun sail or general purpose dinghy is all you need.
  • Aside from the drawings, each plans package comes with a comprehensive building manual that details the building steps, a material list and comprehensive information on epoxy glass building techniques.
  • Under the "BOATS IN BUILD" menu item you will find building diaries that will be helpful as reference during a build.
  • Lots more general boat building info is available on this site, just click Tips, Tricks, Articles menu .

Note:
This 'Overview' is for SAILING AND GENERAL PURPOSE DINGHIES. Each design in this listing gives brief stats and a sail plan, so you can home-in on something that interests or suits you.

For more information there are links to a comprehensive detail page with sailplans, pictures and descriptive text.

Just click the link next to: Go to detail page >>   to study the detail page.
Should you have further queries, please email me!

Plan Orders and Payment:
For details on how to order plans, how to pay and how I ship your order see my Ordering Guide

"Pixie"

Hull type: Single Chine Pram Dinghy.
Principal dimensions:
L.O.A. 2.33 m (7' 7 3/4" ),
Beam 1.37 m (4' 6"),
Sail area - 3.25 m2 (35 sqft).

Plan costs:
30 (+/-US$34) - which entitles you to the building of one boat.

Total costs including shipping:   43
(+/-US$48)
BuyNow button deactivated!

Go to detail page >> Pixie 2.3m (7' 7")

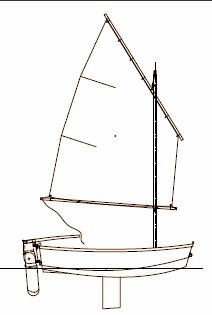

Sail plan

"Pinta"

Hull type: Single Chine.
Principal dimensions:
L.O.A. 3.2m (10' 6"), Beam 1.48m (4' 10")
Sail area: 5.9m2 (64sqft).

Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Pinta 3.2m (10' 6")

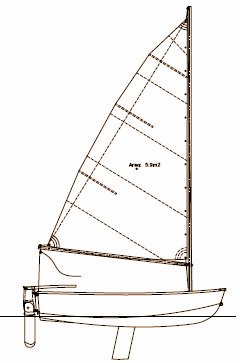

Sail plan

"Alegra"

Hull type: Modified Single Chine.
Principal dimensions:
L.O.A. 3.35 m (10' 11.8"), Beam 1.475 m (4' 10 ")
Sail area: 5.0 m2 (54 sqft).

Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Alegra 3.35 m (11')

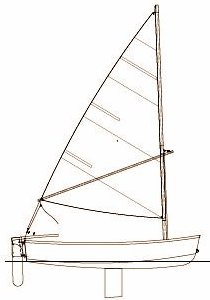

Sail plan

"Oryx General Purpose dinghy"

Hull type: Single chine.
Principal dimensions:
3.51 m (11' 6.2"), 1.55 m (5'1"),
Sail area - 6.42 m2 (69 sqft).

Plan costs:
45 (+/-US$51) - which entitles you to the building of one boat.

Total costs including shipping:   58
(+/- US$65)
BuyNow button deactivated!

Go to detail page >> Oryx 3.51 m (11' 6.2")
Sail plan

"Pandora"

Hull type: Flat Bottom Sharpie.
Principal dimensions:
L.O.A. 3.55 m (11' 7.8" ), Beam 1.54 m (5' 1"),
Sail area - 6.42 m2 (69 sqft).

Plan costs:
40 (+/-US$45) - which entitles you to the building of one boat.

Total costs including shipping:   53
(+/- US$60)
BuyNow button deactivated!

Go to detail page >> Pandora 3.55 m (11' 7.8")

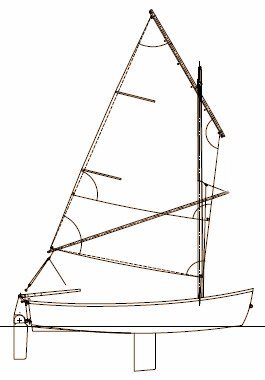

Sail plan

"Piper"

Hull type: Single Chine.

Principal dimensions:

L.O.A. 3.68 m (12' 1"),
Beam 1.59 m (5' 2.6"),
Sail area - Main and working jib: 7.72 m2 (83 sqft).

Plan costs:
45 (+/-US$52) - which entitles you to the building of one boat.

Total costs including shipping:   58
(+/- US$65)
BuyNow button deactivated!

Go to detail page >> Piper 3.68m (12' 1")
Sailplan

"IMP General purpose dinghy"

Hull type: Single Chine.

Principal dimensions:

L.O.A. 4.03 m (13' 2.7"),
Beam 1.59 m (5' 2.6"),
Sail area - 6.9 m2 (75 sqft)

Plan costs:
45 (+/-US$51) - which entitles you to the building of one boat.

Total costs including shipping:   58
(+/- US$65)
BuyNow button deactivated!

Go to detail page >> Imp 4.03 m (13'2.7")
Sailplan

"PIRAGUA"

Hull type: Single Chine.

Principal dimensions:

L.O.A. 4.63 m (15' 2.3"),
Beam 1.66 m (5' 5.4"),
Sail area - 8.8 m2 (95 sqft)


        AVAILABLE AS PLYWOOD KIT



Plan costs:
50 (+/-US$56) - which entitles you to the building of one boat.

Total costs including shipping:   63
(+/- US$71)
BuyNow button deactivated!

Go to detail page >> Piragua 4.63 m (15' 2.3")
Sail plan

"Swift"

Hull type: Double Chine.

Principal dimensions:

L.O.A. 4.62 m (15' 2"),
Beam 1.98 m (6' 6"),
Sail area - Main and working jib: 12.05 m2 (130 sqft).

Plan costs:
60 (+/-US$68) - which entitles you to the building of one boat.

Total costs including shipping:   73
(+/- US$82)
BuyNow button deactivated!

Go to detail page >> Swift 4.62m (15' 2")
